Events

What is an Event?​

An event is a condition that triggers an action.

Conditions are boolean Temporal Variables.

Actions are triggered at time points when the condition is True. They are defined through event creation functions.

Events are created through the following functions and methods. The trigger argument is for the condition:

  • terminate_on(trigger): Terminate the simulation when triggered.
  • IntegratedVar.reset_on(trigger, new_value): Set the Integrated Variable value to new_value when triggered.
  • execute_on(trigger, f): Execute the function f when triggered.

Example: Bouncing Ball​

Consider a bouncing ball:

  • Condition: The ball hits the ground. We use the .crossed() method to create a Temporal Variable that returns True when the contact with the ground occurs.
  • Action: The bounce, which is the reversing of the ball's velocity. We use the .reset_on(trigger, new_value) method on the velocity to change the value of the velocity when it hits the ground.

Crossing Trigger Variables​

In physical systems, where variables are continuous, you should use Crossing Trigger Variables for your event conditions.

Crossing Trigger Variables detects the exact time at which a crossing between a Temporal Variable and a value occurs.

To create a Crossing Trigger Variable, use the .crosses(value, direction) method:

# Create the system
acceleration = vip.temporal(-9.81)
velocity = vip.integrate(acceleration, x0=0)
height = vip.integrate(velocity, x0=2)

hit_ground = height.crosses(0, "falling")
tip

The value argument can be a Temporal Variable.

Crossing Direction​

Use the direction argument to filter triggers:

  • "rising": triggered when the value crosses the threshold from below.
  • "falling": triggered when crossing from above.
  • "both" (default): triggered regardless of crossing direction.

Temporal Triggers​

Two functions are available to create Crossing Trigger Variable from the system clock:

  • timeout_trigger(delay): Triggers when simulation_time==delay.
  • interval_trigger(delay): Triggers regularly at every interval of delay.

The delay argument is a duration in seconds.

Conditional Triggers​

Use logical operators on the Temporal Variables you use as a trigger to create a conditional trigger variable:

v_min = 0.5  # Minimum velocity for the ball to bounce when hitting the ground

# Create the system
acceleration = vip.temporal(-9.81)
velocity = vip.integrate(acceleration, x0=0)
height = vip.integrate(velocity, x0=2)

hit_ground = height.crosses(0, "falling")
trigger_stop = hit_ground & (abs(velocity) <= v_min)

Conditional bounce

Creating Events​

Terminal Events​

Use terminate_on(trigger) to terminate the simulation when a triggers occurs:

acceleration = vip.temporal(-9.81)
velocity = vip.integrate(acceleration, x0=0)
height = vip.integrate(velocity, x0=10)

hit_ground = height.crosses(0, "falling")
vip.terminate_on(hit_ground)

height.to_plot()
vip.solve(10, time_step=0.01)

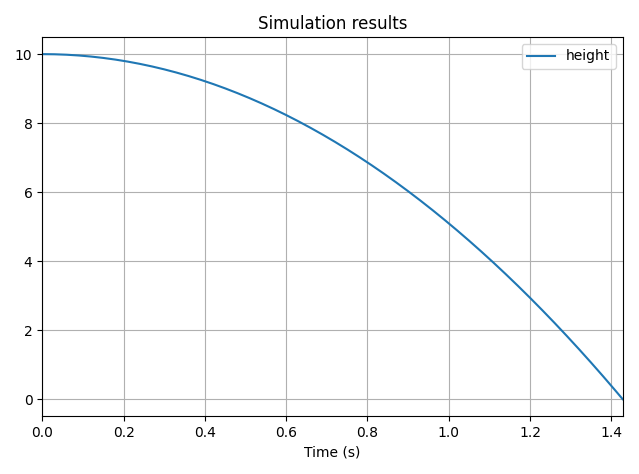

Terminal event

Reset an Integrated Variable​

Use the .reset_on(trigger, value) of an Integrated Variable to instantly change its state:

a = vip.temporal(-9.81)
v = vip.integrate(a, 0)
y = vip.integrate(v, 10)

hit_ground = y.crosses(0, "falling")
v.reset_on(hit_ground, -v)  # Reverse velocity

Custom Events​

You can trigger any function with execute_on(trigger, f). The function f must be a function with side-effects.

vip.execute_on(hit_ground, lambda: print("Hello world"))

Output:

Hello world

To access the event time, add an argument to the input function:

def log_time(t):
    print(f"Collision at {t}.")


# ...
vip.execute_on(hit_ground, log_time)

Output:

Collision at 1.4278431229270645.
